Hydro Mechanical Equipment

Heavy Engineering Workshop (H.E.W) had started with the Fabrication and Testing of all types of Hydro-mechanical equipment including Radial, Vertically sliding and Fixed Wheel Gates, Stoplog & Bulkhead Gates along with different types of Intake Structures & Embedded Parts right from the inception.

As far as the quality & dimensional accuracy of fabrication, welding and machining operations are concerned, those already achieved can easily be compared with the best in the country. Over 16000 Mt of Hydro Mechanical items have already been manufactured & supplied to various projects in this country, after being inspected by reputed inspection agencies of Indian & German origin:

a) Baglihar Hydro Electric Project (BHEP) (3 x 150 MW = 450 MW HEP in J&K) - 6000 Mt
b) Vishnuprayag Hydro Electric Project 4 x 100 MW = 400 MW HEP in UTTARAKHAND - 500 Mt
c) Omkareshwar Hydro Electric Project 8 x 65 MW = 520 MW HEP in M.P. - 4500 Mt
d) Karcham Hydro Electric Project 4 x 250 MW = 1000 MW HEP in H.P.- 2700 Mt
e) Barrage gates at BINA TPS & JNSTPP, Nigrie. - 3000 Mt

HYDRO MECHANICAL EQUIPMENT
(Type wise summary)

Sr.No EQUIPEMENT CLIENT WEIGHT (M.T.)

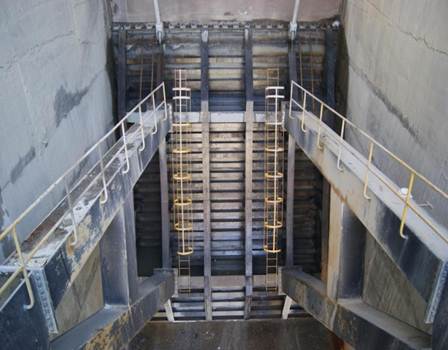

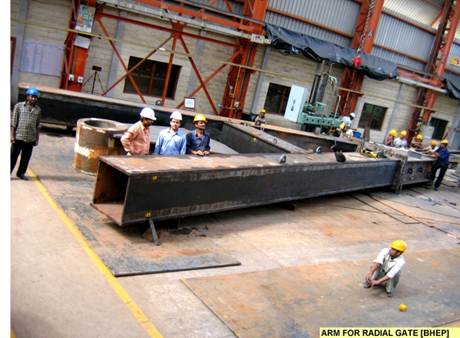

1 RADIAL GATE BHEP & KWHEP 2400
2 STOPLOG GATE BHEP & KWHEP 1750

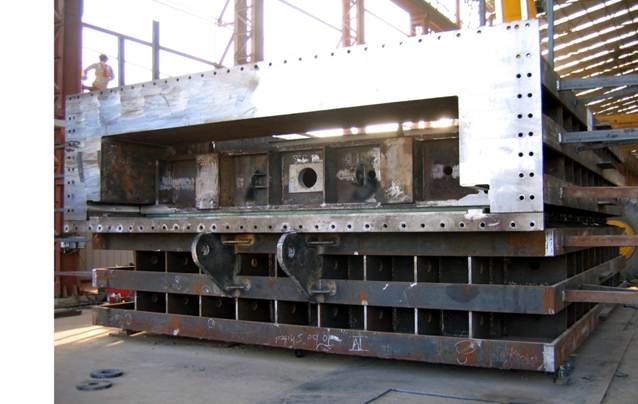

3 BONNETED EMERGENCY GATE BHEP 1040
4 FIXED WHEEL GATES & TRASH RACK BHEP, KWHEP, BINA TPS, JNSTPP 3000
5 SPILLWAY STOPLOG GATE OHEP 1350
6 INTAKE TRASH RACK OHEP 1500

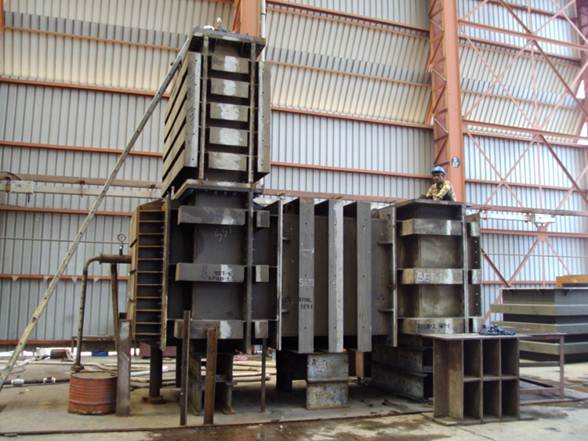

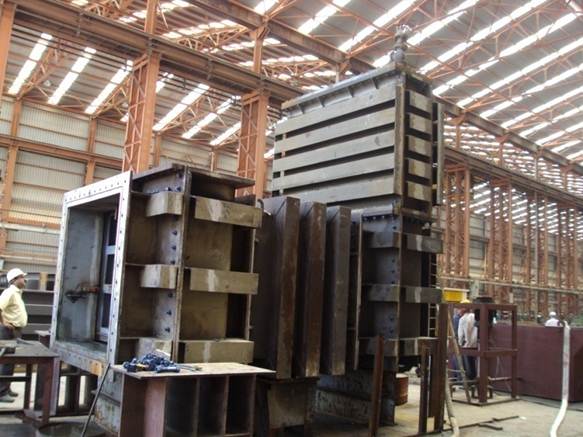

7 FIXED WHEEL GATE, TAIL RACE OUT FALL GATE, FLUSHING CONDUIT GATES & TRASH RACKS VHEP 500
8 REST OTHER GATES, EMBEDDED PARTS, TRASH RACKS ETC. BHEP, KWHEP, OHEP, BINA-TPS, JNSTPP 5160
CUMULATIVE TOTAL : 16700*

BHEP: Baglihar Hydro Electric Project, KWHEP : Karchham Wangtoo Hydro Electric Project

OHEP: Omkareshwar Hydro Electric Project VHEP : Vishnuprayag Hydro Electric Project

JNSTPP : Jaypee Nigrie Super Thermal Power Plant Bina TPS: Bina Thermal Power Station
