Cement Plant Equipment

H.E.W. has embarked on the manufacturing of Cement Plant equipment under license and rigorous Inspection of reputed Third Parties/OEMs, from Germany & Switzerland, which have since been commissioned and are running successfully, at various Cement Plants in different parts of India.

1.1 KILN SHELL

A Rotary kiln is a pyroprocessing device used to raise the temperature of a predesigned mixture of limestone and coal dust up to a high temperature level of 1400˚ C max. that effects calcination process. Materials produced using rotary kilns are called Cement Clinker

Our reference list for major orders executed for the fabrication & supply of Kiln Shells is given below:

Sr.No	JOB DESCRIPTION	MAXIMUM SIZE (L X W X H)	CAPACITY (TONNES PER DAY)	CLIENT	WEIGHT (MT)
1	KILN FOR SP-I/JGCP	Dia 4.75 x 75 Mtrs. Long for SP-I	5250	SP-1	375
2	KILN FOR SP-II/JGCP	Dia 4.75 x 75 Mtrs. Long for SP-II	5250	SP-II	375
3	KILN FOR DALLA SUPER	Dia 5.20 x 72 Mtrs. Long for Dalla Super Project	6000	Dalla Super	435
4	KILN FOR JSCP/ BAGWAR	Dia 4.35 x 66 Mtrs. Long for JSCP Project	4500	JSCP	281

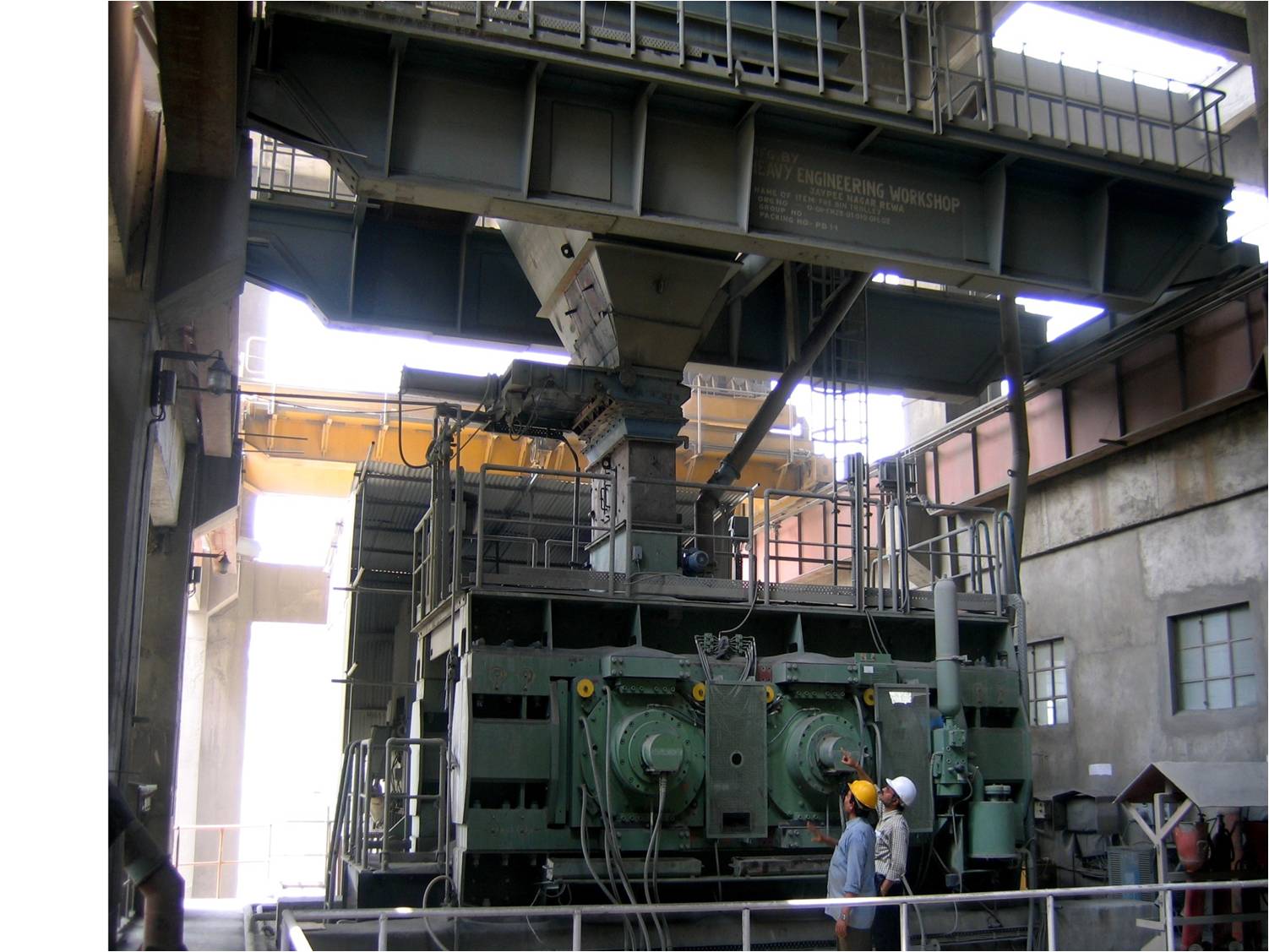

1.2 RAW MILLHOUSINGS

A Rawmill is an equipment used to grind raw materials (limestone) into "rawmix" before feeding into the rotary Kiln Tube.

TALLY OF RAW MILL HOUSINGS FABRICATED & SUPPLIED AS PER PFEIFFER DESIGN:

Sr.No	Project Name	Qty. (Nos.)	Designation	Capacity (Tonnes Per Hour)	Wt. (Mt.)
1	Sardar-I/JGCP	1	MPS 4750B	380	230
2	Sardar-II/JGCP	1	MPS 5000B	400	270
3	Balaji-I RM-1	1	MPS 5000B	450	260
4	Balaji-II RM-2	1	MPS 5000B	450	260
5	Dalla Super RM-1	1	MPS 5000B	400	260
6	Dalla Super-II RM-2	1	MPS 4000B	180	145

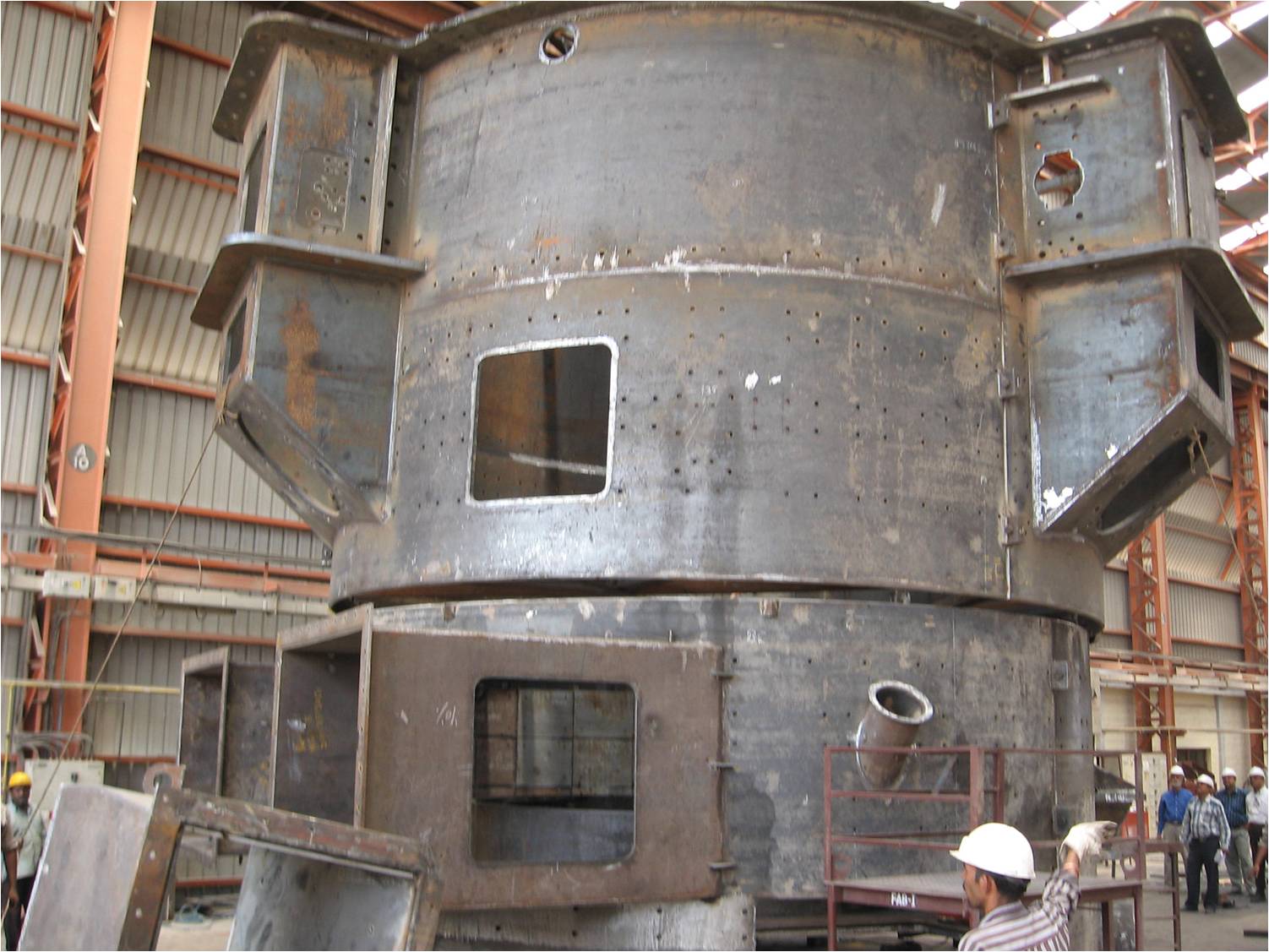

1.3 COAL MILL HOUSINGS

A Coalmill or or coal pulverizer, is the equipment used to grind the coal to micro powder form before the manufacturing of cement.

TALLY OF COAL MILL HOUSINGS FABRICATED & SUPPLIED AS PER PFEIFFER DESIGN:

Sr.No	Project Name	Qty. (Nos.)	Designation	Capacity (Tonnes Per Hour)	Wt. (Mt.)
1	Sardar-I/JGCP	1	MPS 3070BK	62	105
2	Sardar-II/JGCP	1	MPS 3070BK	62	105
3	Bajali-I	1	MPS 3070BK	58	105
4	Balaji-II	1	MPS 3070BK	58	105
5	Dalla Super-I	1	MPS 3070BK	50	105

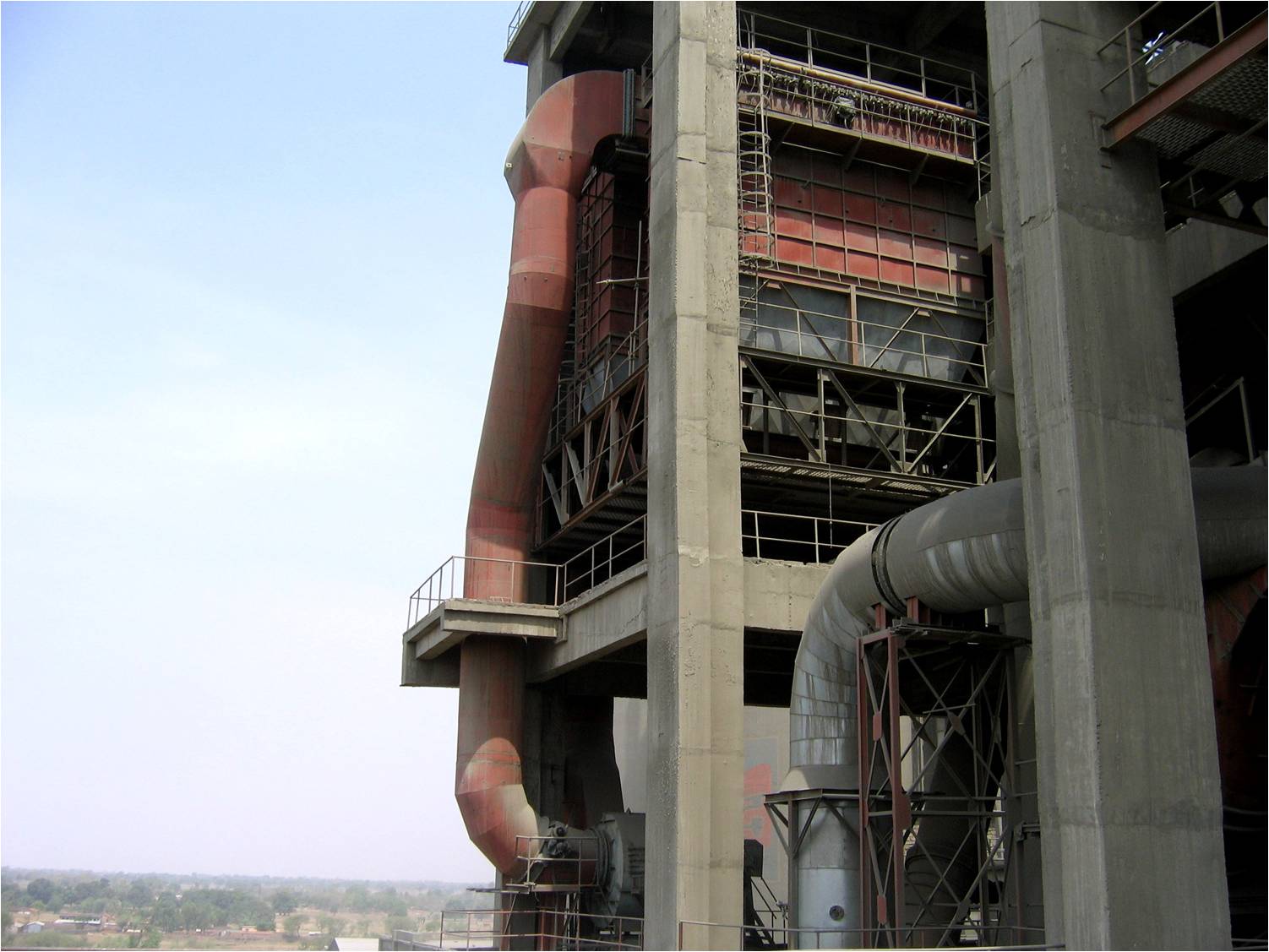

1.4 PRE HEATER CYCLONE

Cyclone preheater is an important part of calcination system in cement plant, and is the main device for increasing the quality of the cement products and reducing energy consumption.

1.5 TOTAL TALLY OF CEMENT PLANT EQUIPMENT MANUFACTURED & DELIVERED SO FAR

The total tonnage of different type of equipment and misc. items, which were fabricated at HEW for various applications in Cement Plants, are tabulated as under
